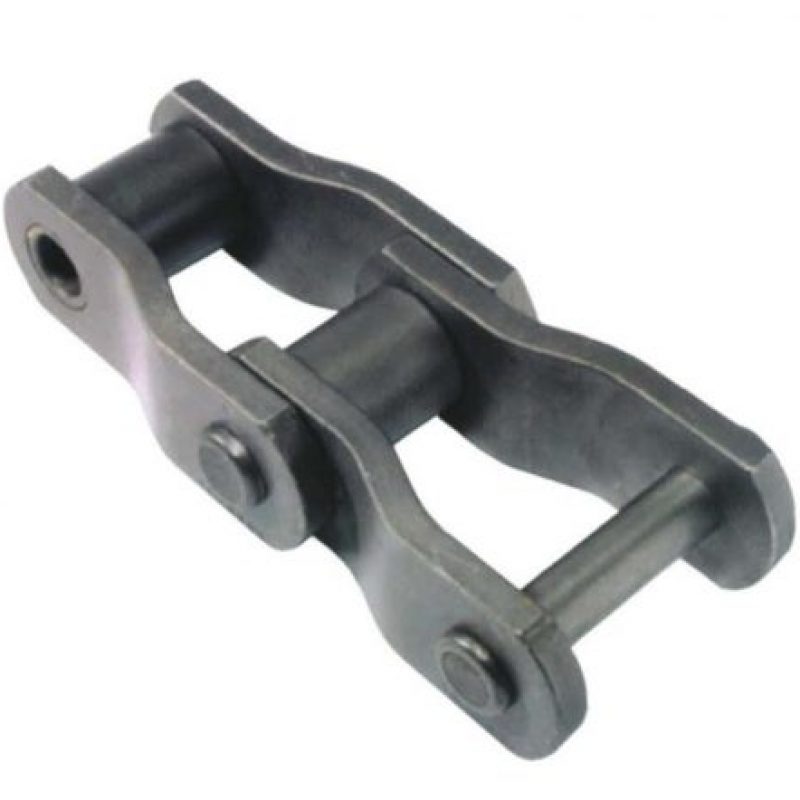

科艾重載彎板鏈以高精度、耐磨損和耐疲勞著稱,其特殊的彎鏈板結構更適于帶有較大沖擊性的載荷傳動和起動頻繁的間歇性工作環境,主要應用于礦山、冶金、工程機械等行業的較大型設備及繁重工況下的動力傳動。

鏈條需具有較高的強度,耐沖擊和較好的耐磨性,鏈條鏈板為彎板結構,鏈條選用中碳合金鋼材質,采用加熱紅壓和退火后冷壓兩種工藝,鏈板節距孔通過沖擠工藝,提高了孔徑的光亮帶長度,增加了鏈板和銷軸間的配合面積,提高了銷軸與鏈板的脫出力。

鏈板經整體熱處理,提高了鏈板的強度,銷軸采用整體熱處理后表面高頻處理的熱處理工藝,提高銷軸的強度也使得銷軸表面有較高的硬度,提高了銷軸的耐磨性,套筒選用表面滲碳的工藝,使套筒芯部具有較高的韌性而表面有較高的硬度,提高了套筒的抗沖擊能力,滾子為整體熱處理。

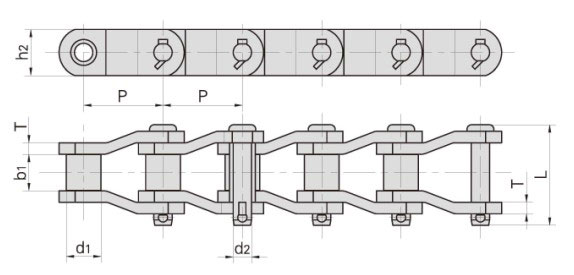

鏈號節距滾子直徑內節內寬銷軸直徑銷軸長度鏈板高度鏈板厚度極限拉伸載荷平均拉伸載荷每米長重
Pd1 maxb1 mind2 maxL maxh2TQ minQoq
mmmmmmmmmmmmmmkN/LBkNkg/m
201063.5031.7538.1015.9089.047.87.9250/5681827013.53
251078.1031.7536.9016.0094.8408.027/61590292.610.72
2510H78.1031.7536.916.595.3459.5280.4/63727302.812.70
2512(MXS3011)77.9041.2839.6019.05100579.7340/77272367.218.40
2512F277.9041.2838.5019.05103.46010.400/9090942020.28
281488.9044,4536.6022.23117.65812.7471/105955507.625.70
3214103.2044.4548.0022.00123.55513476/10818051423.60
3214F1103.2044.4549.2023.901296014666.4/15145070026.7
3315103.4545.2449.3023.8513063.514.2550/12500059427.71
3618114.3057.1552.3027.9713879.214.2760/172727820.841.20
4020127.0063.5069.9031.78165.788.915.7987/2243001069.248.60
2184152.4076.2035.0022.2096519.5330/7500037818.17
MXS88266.2722.2328.5811.1068.528.56.4115.6/26272124.85.30
MXS307578.1031.7538.1016.4693.544.59.7334./75909360.713.45
MXS1242103.2044.4549.2022.23124.55712.8623/141591672.824.63
SS58866.2722.2328.6011.1163.728.66.4130/295451445.46
SS588F166.2722.2327.0011.1162.028.66.488.9/2020597.85.39
SS588F266.2722.2327.009.5359.025.45.684.46/1919591.24.26
SS568H77.9041.3039.7019.0597.6579.5340/77272367.219.80
SS40H(P)78.1131.7538.1015.889741.59.5250./5681828012.60
SS124103.2044.4549.2022.23127.25712.7560/12727259022.57
SS15F1103.4545.2447.623.85133.06015650/14772661627.34
SS1245103.4545.2049.623.80129.46014.5550/12500060531.19
SS635H114.3057.2052.427.9413776.214.5760/17272783637.80
重載彎板鏈條參數
